Pompa Vacuum Vacuubrand MZ 2C NT

Vacuubrand merupakan spesialis pompa vakum asal Jerman yang sejak lama mengkhususkan produksi di produk pompa vacum. Vacuum pump Vacuubrand sudah sangat terkenal di pekerja labor di dunia, selain performanya yang paling bagus dikelasnya, pompa vakum ini juga terkenal dengan awet dan bandelnya.

Pompa vacum type MZ 2C NT ini merupakan pompa vacum yang menggunakan diafragma sebagai media untuk menghasilkan daya hisap, dan tanpa menggunakan oli sama sekali, jadi perawatan sangat mudah dan tidak mengkontaminasi sample yang akan di hisap. dalam hal penggunaan dilaboratorium sangat sering menggunakan pelarut-pelarut atau bahan-bahan yang korosif, untuk itu, pompa vacuum ini sudah dilengkapi dengan bagian yang sudah tahan terhadap chemicals dan gas yang bersifat korosif. semua part dari pompa vacuum ini yang kontak dengan media terbuat dari bahan PTFE yang tahan terhadap senyawa kimia.

Pompa vacuum type MZ 2C NT ini merupakan vacuum pump yang paling banyak digunakan dalam laboratorium kimia, farmasi, industri makanan dan minuman, industri biokimia, industri tambang, rumah sakit serta laboratorium penelitian pemerintah. Berikut dibawah ini adalah performa dari Pompa Vacuum Vacuubrand MZ 2C NT.

Performance features :
outstanding chemical resistance and superior vapor tolerance
high performance even at low vacuum levels
optimized vacuum even with gas ballast for condensate purge
whisper quiet and low vibration
long diaphragm life, maintenance-free drive system

Technical data Unit : MZ 2C NT
Number of heads / stages : 2 / 2
Max. pumping speed at 50/60 Hz, m3/h : 2.0 / 2.3
Max. pumping speed at 50/60 Hz, cfm : 1.2 / 1.4
Ultimate vacuum (abs.), mbar/torr : 7 / 5
Ultim. vac. (abs.) with gas ballast, mbar/torr : 12 / 9
Ambient temperature range (operation), °C : 10 – 40
Ambient temperature range (storage), °C : -10 – 60
Max. back pressure (abs.), bar : 1.1
Inlet connection : Hose nozzle DN 8-10 mm
Outlet connection : Hose nozzle DN 8-10 mm
Rated motor power, kW : 0.18
Rated motor speed at 50/60 Hz, min-1 : 1500/1800
Degree of protection : IP 40
Dimensions (L x W x H), mm : 243 x 243 x 198
Weight, kg : 11.1
Noise level at 50 Hz, typ., dBA : 45
NRTL certification : Canada and the USA
ATEX conformity (only 230V) : II 3/- G IIC T3 X Internal Atm. only
Items supplied : Pump completely mounted, ready for use, with manual.
Accessories : Rubber vacuum tubing DN 8 mm (20686001)

Pompa Vakum Diafragma Tahan Kimia

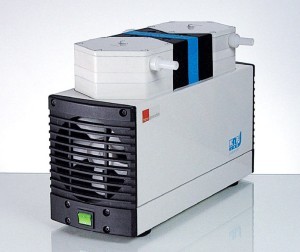

Vacuum pump KNF
Alat Laboratorium Vacuun pump Oil free KNF

Pada kesempatan ini kami ingin memperkenalkan lebih jauh tentang vacuum pump yang tahan terhadap penggunaan uap dan gas dari bahan kimia.
Sering kali masalah yang terjadi laboratorium adalah penggunaan vacuum pump yang tidak tahan terhadap gas dan uap kimia, mengakibatkan sebentar saja saja pompa tersebut sudah rusak, hal ini merupakan kesalahan pemilihan jenis pompa, banyak mahasiswa mengaplikasikan pompa vacuum untuk semua aktifitas laboratorium, padahal mereka tahu itu tidak benar, mungkin karena alasan keterbatasan ketersediaan pompa, atau karena tidak tersedianya pompa yang sesuai kebutuhan saat itu.
KNF LABOPORT® adalah salah satu nama dari produsen vacuum pump yang memproduksi pompa vakum jenis diafragma yang tahan terhadap uap dan gas kimia. Pompa ini dirancang untuk dapat digunakan mentransfer dan mengevakuasi hampir semua gas dan uap di laboratorium. Mereka menggunakan bahan-bahan tahan kimia seperti PTFE untuk seluruh bagian kepala pompa, FFPM untuk katup, dan diafragma KNF terstruktur dengan lapisan PTFE.
Disini kami kenalkan Vacuum pump tahan kimia seri N 840,3 memggunakan diafragma pompa yang double kepala, jelas tidak menggunakan oli, dan kering dalam pengoperasiannya pada berbagai aplikasi laboratorium. Mereka bekerja (mentransfer dan memompa turun) tanpa terkontaminasi.
Bekerja mendeliveri gas atau uap maksimal sebanyak 34 liter per menit dan ultimate vacuum nya sebesar 8 bar g, sudah sangat cukup untuk semua aplikasi penelitian di laboratorium, baik itu untuk rotary evaporator atau sistem penyaringan lainnya. Power konsumsinya sebesar 245 Watt. Berat unit sebesar 12.6 Kg, dan dimensi L.341cm H.226cm W.166cm.
Jantung dari pompa ini yaitu diafragma  KNF terstruktur didesain dengan sangat kompak, Diafragma ini dipatenkan stres-dioptimalkan menggunakan metode Finite Elemen. Akibatnya, KNF mampu membuat pompa kecil sambil meningkatkan umur pakai diafragma lebih lama.

Untuk brosur dan data teknis lainnya silahkan download disini

BUSCH R 5 KB 0010/0016 E VACUUM PUMP

Busch R5 KB 0010 E Vacuum Pump

Sizes KB 0010 E and KB 0016 E are particularly compact, high-performance rotary vane vacuum pumps from the time-tested R 5 series. These vacuum pumps are designed specifically for mounting in machines and equipment with limited available space.

Application-oriented
The particularly compact construction and optimal dimensions of these vacuum pumps make them ideal for mounting in vacuum packaging machines. A comprehensive range of accessories guarantee that the pumps can be adapted to meet any application.

Operationally reliable
through robust construction, the well proven vane design and high quality standards. A stable non-return valve in the suction pipe prevents the recipients being vented when the vacuum pump is switched off.

Applications
Vacuum packaging
• Food technology
• Wood working
• Pneumatic conveying
• Transport and lifting systems
• Plastics industry

Technical specifications
These vacuum pumps work according to the rotary vane principle.
An eccentrically installed rotor rotates in the cylinder. The centrifugal force of the rotation pushes the vanes, which glide in slots in the rotor, towards the cylinder wall. The vanes separate the sickle-shaped space between rotor and cylinder into chambers. When the chambers are connected with the inlet channel, gas is sucked in, compressed by the next rotation and pushed into the oil separator. Differential pressure constantly causes oil to be passed into the compression chambers. The oil and medium are then discharged into the oil separator and there separated from the exhaust air by gravity and the exhaust filter. Oil collects on the bottom of the oil separator and is passed into the compression chamber again (oil circulation).

Download Brochure

Harga Rp. 33.960.000,-

Busch : R5 – Oil Lubricated Rotary Vane Vacuum Pump

Busch R5
BUSCH – R5 Oil Lubricated Rotary Vane Vacuum Pump

The robust and tried and tested vacuum pump for vacuum packaging and many other applications in industry.
Powerful, reliable, service-friendly
Special versions for: increased humidity, oxygen handling, explosion-prone areas (conforming to ATEX)
Nominal displacement : 4 – 1600 m³/h (for50 Hz) and 4,8 – 1920 m³/h (for 60 Hz)
Ultimate pressure : 0,1 – 20 hPa (mbar).

Technical Data – Busch – R5

Jual Vacuum Pump Chemical Resistant

KNF Chemical resistant
KNF Vacuum Pump Chemical Resistant

KNF LABOPORT ® adalah sebuah merek dagang yang memproduksi pompa vakum / vacuum pump dengan system diafragma. Pompa ini dapat digunakan untuk mentransfer dan mengevakuasi hampir semua gas dan uap laboratorium. Dicirikan khususnya dengan penggunaan bahan tahan kimia seperti serba PTFE untuk kepala pompa, FFPM untuk katup, dan diafragma terstruktur KNF dengan lapisan PTFE.

Lanjutkan membaca Jual Vacuum Pump Chemical Resistant

KNF : LABOPORT Mini Diaphragm Vacuum Pumps

KNF : Laboport Vacuum Pump

Series N 816.3 diaphragm pumps are double-head, dry-running devices used in a wide range of laboratory applications.
They transfer and pump down without contamination.
The heart of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was stress-optimized
using the Finite Elements method. As a result, we were able to make the pumps smaller while increasing the service life of the diaphragm.
The pumps are available in various versions differing in the materials which contact the media. Lanjutkan membaca KNF : LABOPORT Mini Diaphragm Vacuum Pumps

Isolab : Membrane Pump Vacuum & Pressure

vacuum pump
Isolab Vacuum & Pressure Pump

Operates as an air pressure and vacuum pump which is ideal vacuum filtration, vacuum distilation, vacuum drying, gel drying, chromatograpy applications and so on.
It has features like continuous oil free pumping with low noise level, high efficiency and long lifetime.
Filtering material in the air exchange bin of the body to guarantee clean air. Lanjutkan membaca Isolab : Membrane Pump Vacuum & Pressure
