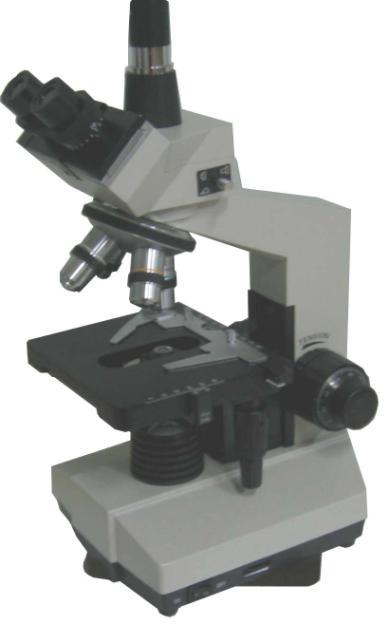

| Biological Microscope Trinoculer XSZ-107E |
Application and Features:
This biomicroscope is specialy designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes and colleges and used for routine work and research in biology, bacteriology, cytology, and pharmacology.
It possesses coaxial coarse and fine focusing mechanism, Brightness can be adjusted according to requirement.
Specification:
1. Eyepiece
2. Objective
4 x 0.10 31.04 37.5
10 x 0.25 17.13 7.316
40 x 0.65 4.65 0.632 spring
100 x (oil) 1.25 2.906 0.198 Spring
3. Total magnification after grouping eyepieces and objectives Objectives Eyepieces
4 x 10 x 40 x 100 x
10 x 40 x 100 x 400 x 1000 x
16 x 64 x 160 x 640 x 1600 x
4. Mechanical tube length : 160 mm
5. Conjugate distance between object and image : 195 mm
6. Stage : provides 40 mm x 75 mm X-Y travel
7. Abbe condenser N.A = 1.25 with iris diaphragm
8. Diameter of filter : 32 mm
9. Coarse focusing adjustment range : 30 mm
10. Fine focusing adjust range : 30 mm
11. Illumination : 6 V/ 20 W adjustable brightness lamp
12. Net weight : 6.5 kg
13. Measurement : 220 x 180 x 350 mm (L x W x H)
14. Can be connected to camera With good spring
Accessories
• 1 set microscope
• Objective : 4x, 10x, 40x, 100x (oil) : 1 pcs each
• Eyepieces : 10x, 16x : 2 pcs of each
• Reflecting mirror : 1 pcs
• 6 V/ 20 W spare halogen lamp : 1 pcs
• Filter : green or light blue : 1 pcs each
• Cedarwood oil : 1 bottle
Harga Call Us
